Trio

The Premium Pack

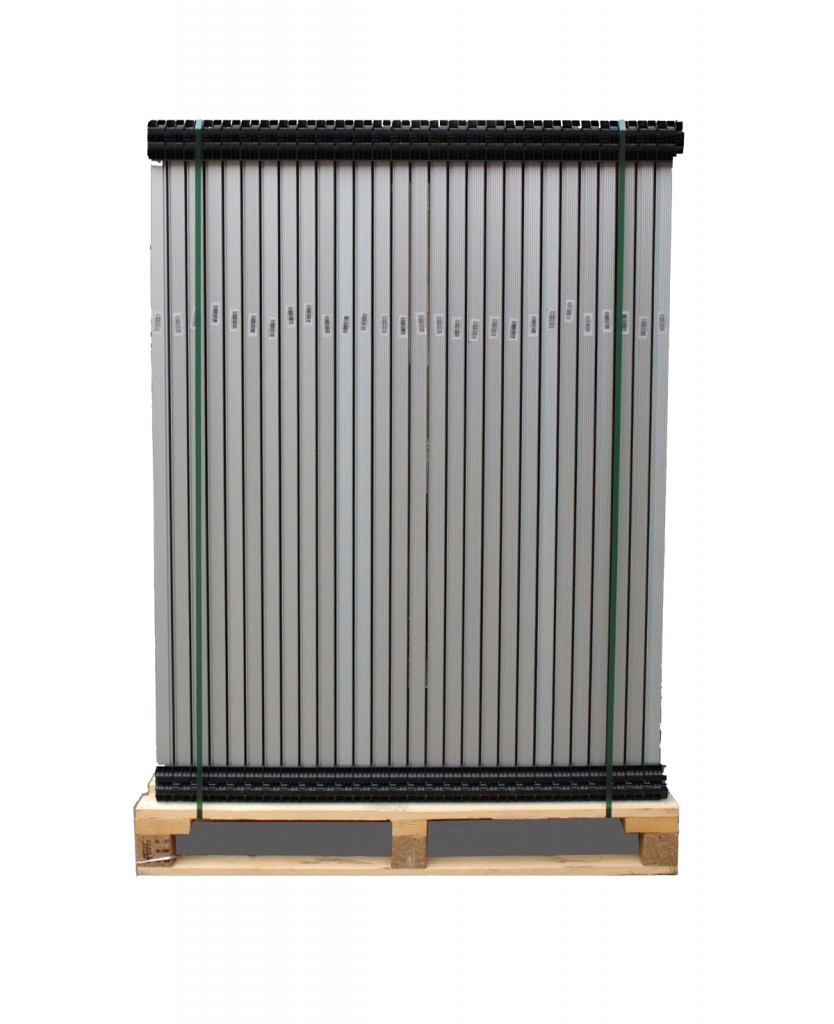

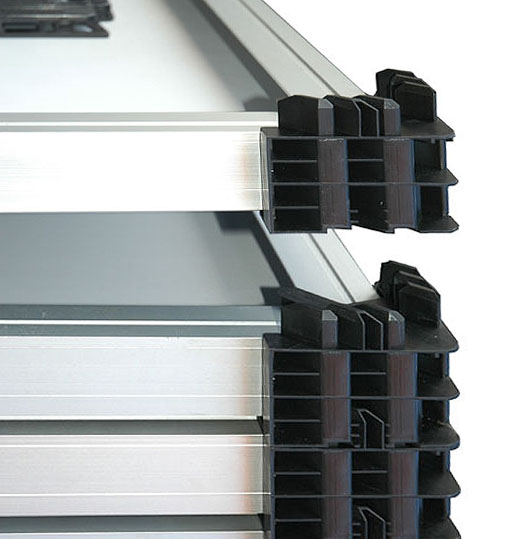

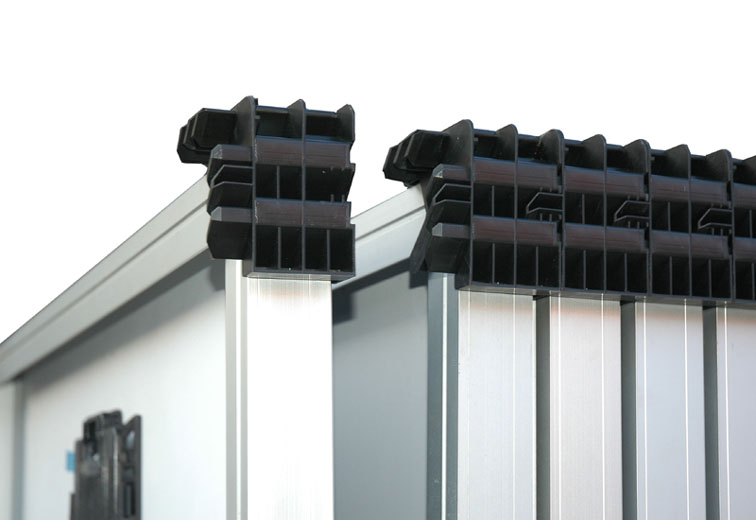

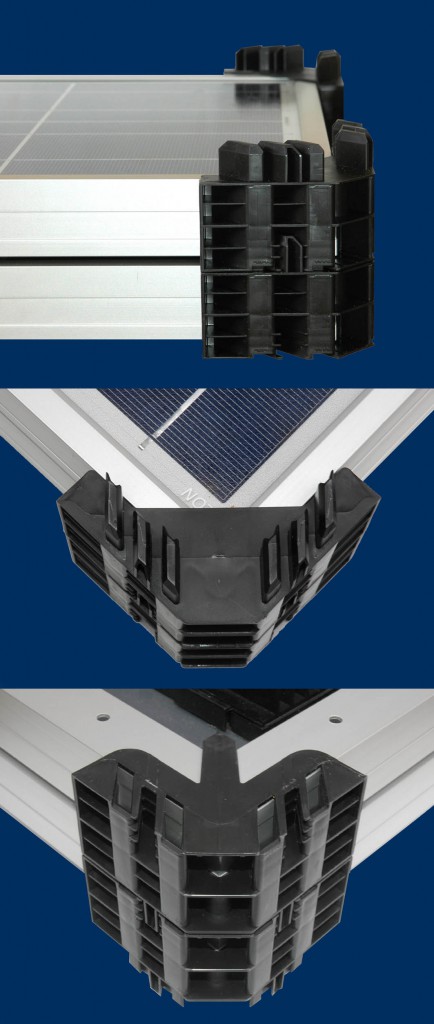

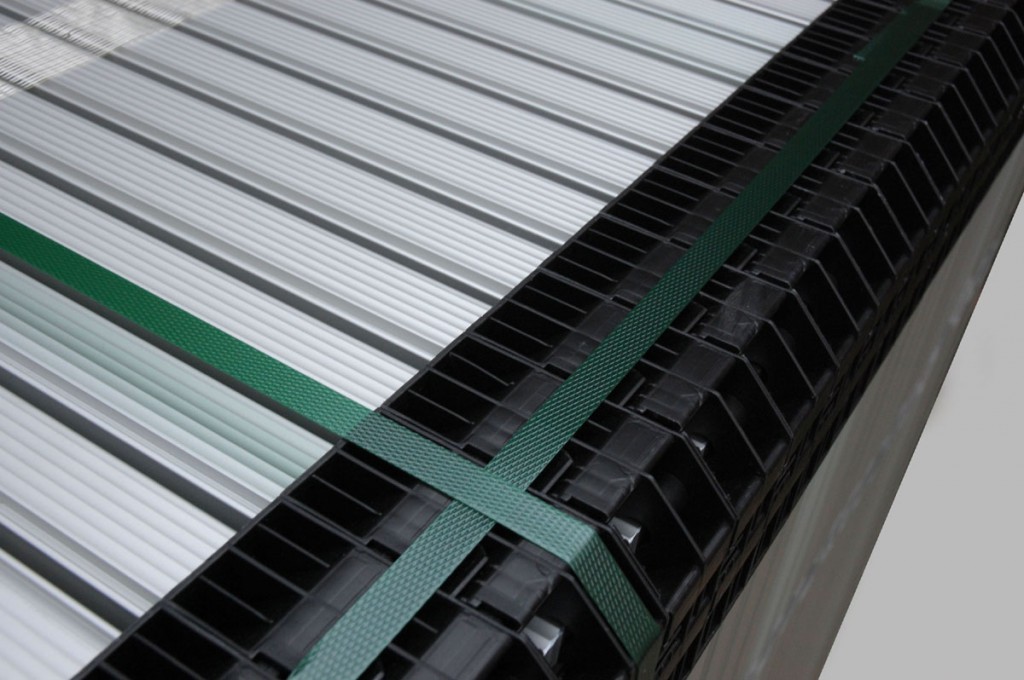

It is called TRIO because you can ship module stacks in three directions: horizontally, vertically on short side and vertically on long side.

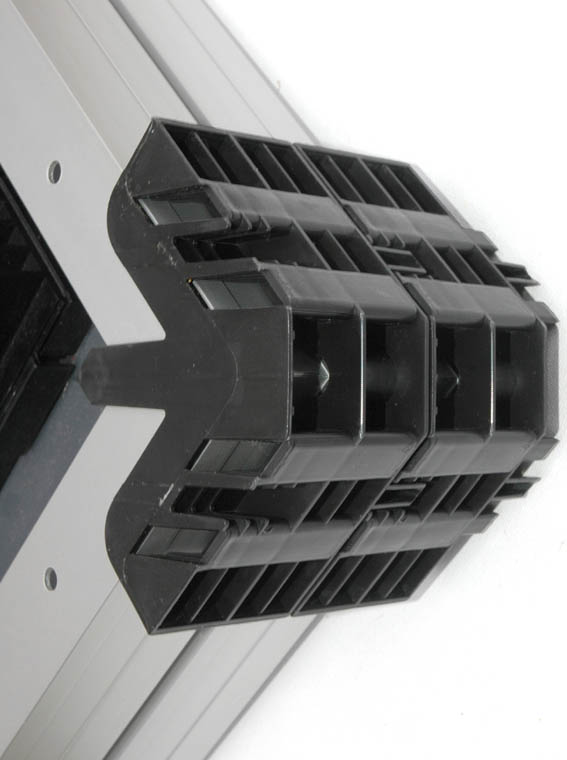

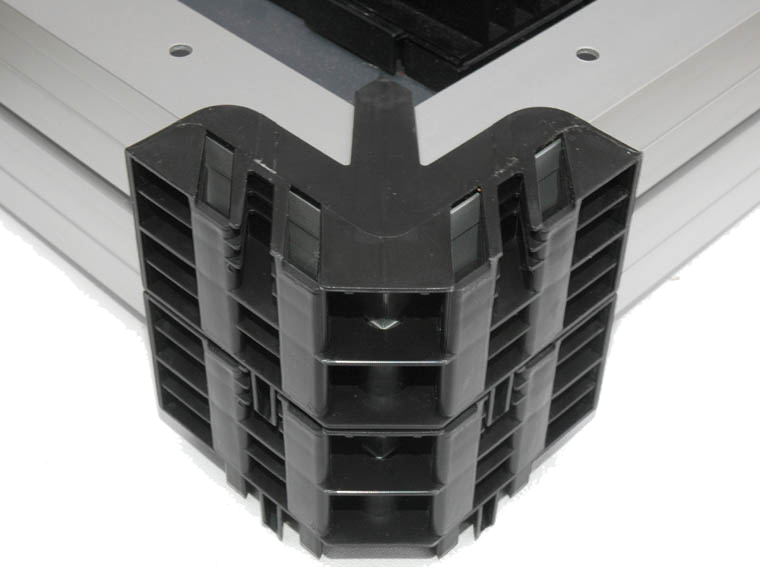

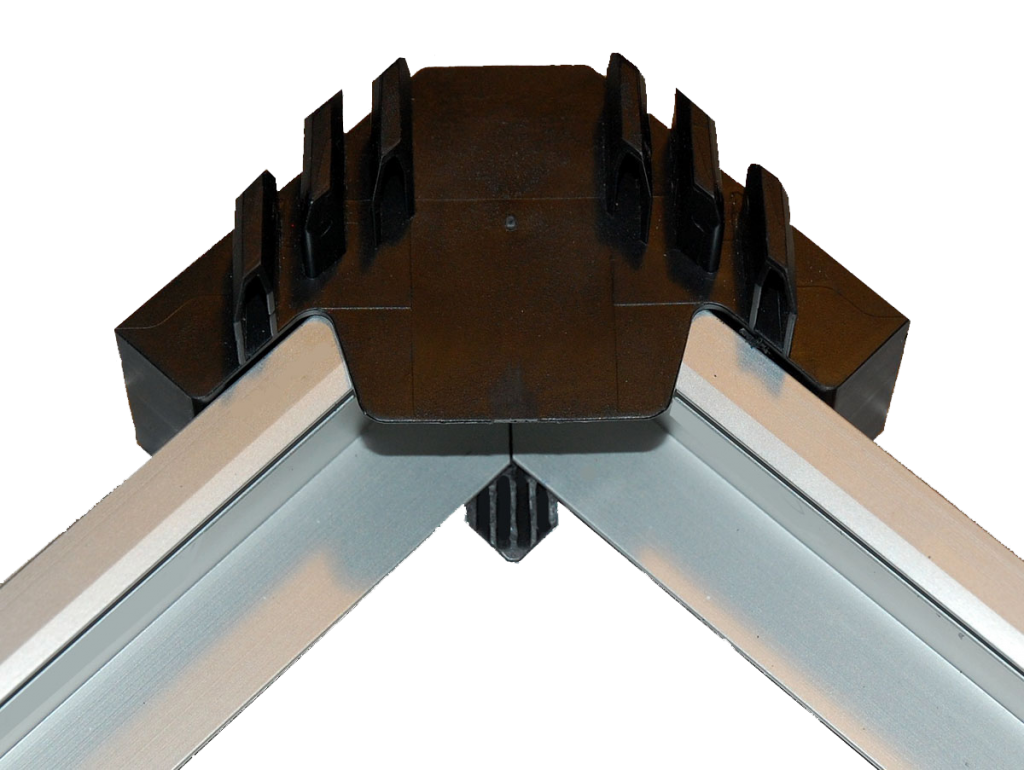

For safe transport, the corners must fit exactly to the aluminium frame.

We are continuously expanding our portfolio. Currently we can offer samples for the TRIO sizes listed below.

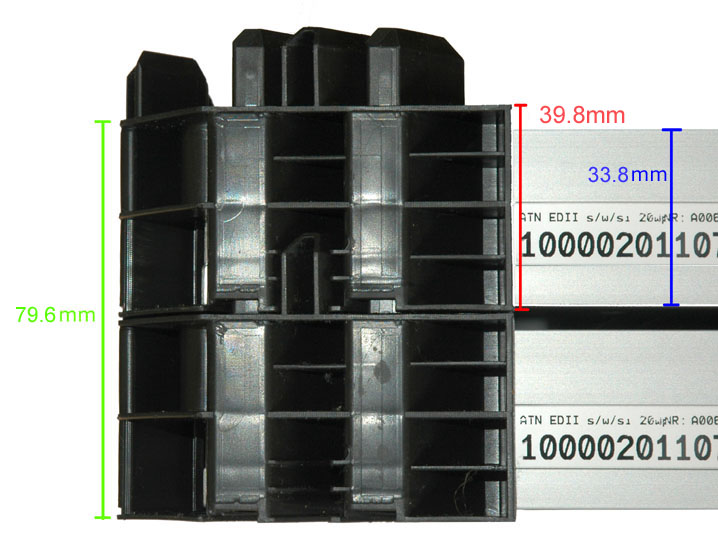

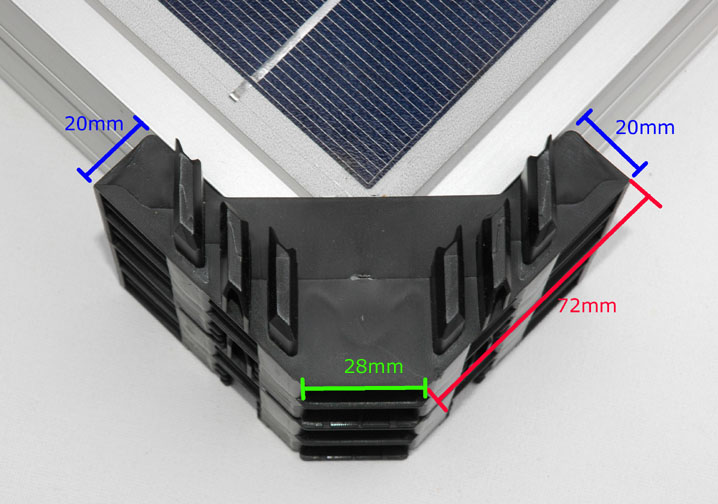

No.	Frame Height (mm)	Frame Width (mm)	Comment
1	35	14
2	35	18
3	35	20
4	35	25
5	35	28,5
6	35	30
7	35	35
8	38	26
9	40	25
10	40	25	sunnyside down
11	40	26,4
12	40	30
13	40	35
14	40	40
15	42	9	sunnyside down
16	42	27	sunnyside down
17	42	30
18	42	37
19	42	37	sunnyside down
20	42	40
21	45	26
22	45	30
23	45	35
24	45,3	35
26	45,5	30
27	45,5	35
28	46	25/22	asymmetric
29	46	30
30	46	38
31	50	16,5
32	50	27,5
33	50	30
34	50	30.2-9	asymmetric
35	50	32
36	50	35
37	50	40
